Linear Solvers
Sparse, Direct Solvers with SuperLU
To begin this lesson
- Enter the lesson directory
cd track-5-numerical/superlu_dist
There are two folders:
SRC/ : source code
EXAMPLE/ : example drivers
The Example Source Code
README file explains various example drivers.
Running the Example

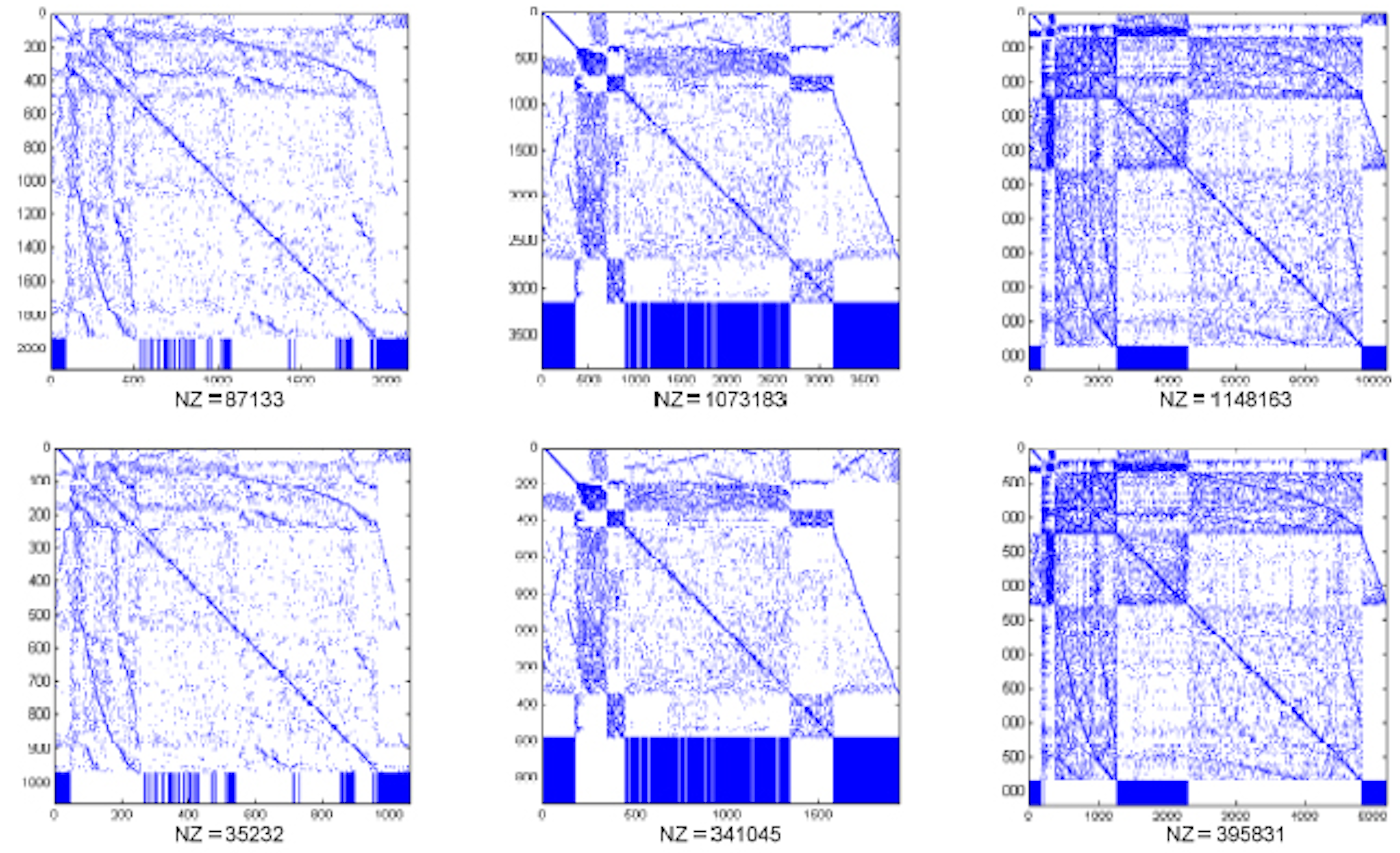

The current directory contains relatively small sparse matrices: g4.rua, g20.rua, and big.rua.
Set the following directory that contains larger matrix files:
export matdir=/eagle/ATPESC2024/usr/MathPackages/datafiles
Set to use one OpenMP thread:
export OMP_NUM_THREADS=1
Run 1 (test 2D algorithm driver, with GPU)
mpiexec -n 2 pddrive -r 1 -c 2 ${matdir}/torso3.mtx 2>&1 | tee run1.txt
Expected Behavior/Output
**************************************************
.. options:
** Fact : 0
** Equil : 1
** DiagInv : 1
** ParSymbFact : 0
** ColPerm : 4
** RowPerm : 1
** ReplaceTinyPivot : 0
** IterRefine : 2
** Trans : 0
** SymPattern : 0
** lookahead_etree : 0
** Use_TensorCore : 0
** Use 3D algorithm : 0
** num_lookaheads : 10
** parameters that can be altered by environment variables:
** superlu_relax : 60
** superlu_maxsup : 256
** min GEMM m*k*n to use GPU : 5000
** GPU buffer size : 256000000
** GPU streams : 4
** estimated fill ratio : 5
**************************************************
Matrix size min_mn 259156
Nonzeros in L 122213768
Nonzeros in U 122247101
nonzeros in L+U 244201713
nonzeros in LSUB 16559556
GPU Driver version: v 11040
GPU Devices:
0 : NVIDIA A100-SXM4-40GB 8 0
Global memory: 40536 mb
Shared memory: 48 kb
Constant memory: 64 kb
Block registers: 65536
** Memory Usage **********************************
** Total highmark (MB):
Sum-of-all : 2548.54 | Avg : 1274.27 | Max : 1289.68
Max at rank 1, different stages (MB):
. symbfact 153.10
. distribution 735.40
. numfact 1258.87
** NUMfact space (MB): (sum-of-all-processes)
L\U : 2078.13 | Total : 2548.54
. max at rank 1, max L+U memory (MB): 1052.52
. max at rank 1, peak buffer (MB): 237.15
**************************************************
** number of Tiny Pivots: 0
Sol 0: ||X-Xtrue||/||X|| = 3.972251e-15
**************************************************
**** Time (seconds) ****
EQUIL time 0.017
ROWPERM time 0.086
COLPERM time 2.839
SYMBFACT time 0.549
DISTRIBUTE time 1.693
FACTOR time 11.032
Factor flops 3.479445e+11 Mflops 31540.87
SOLVE time 0.217
Solve flops 4.846323e+08 Mflops 2230.42
REFINEMENT time 0.465 Steps 2
Run 2 (test 3D algorithm driver, with GPU)
mpiexec -n 2 pddrive3d -r 1 -c 1 -d 2 ${matdir}/torso3.mtx 2>&1 | tee run2.txt
Expected Behavior/Output
....
FACTOR time 5.213
....
Run 3 (test 3D algorithm driver, without GPU)
export SUPERLU_ACC_OFFLOAD=0
mpiexec -n 2 pddrive3d -r 1 -c 1 -d 2 ${matdir}/torso3.mtx 2>&1 | tee run3.txt
Expected Behavior/Output
....
FACTOR time 14.373
....
Run 4 (try different sparsity ordering options)
mpiexec -n 1 pddrive -q 0 big.rua
mpiexec -n 1 pddrive -q 1 big.rua
mpiexec -n 1 pddrive -q 2 big.rua
mpiexec -n 1 pddrive -q 3 big.rua
mpiexec -n 1 pddrive -q 4 big.rua
mpiexec -n 1 pddrive -q 5 big.rua
Expected Behavior/Output
0: NATURAL, nonozeros in L+U: 15497854
1: MMD_ATA, nonozeros in L+U: 248854
2: MMD_AT_PLUS_A, nonozeros in L+U: 262794
3: COLAMD, nonozeros in L+U: 210766
4: METIS_AT_PLUS_A, nonozeros in L+U: 245710
5: PARMETIS, nonozeros in L+U: 245710
Further Reading
https://github.com/xiaoyeli/superlu_dist
